Arithmetic coding (a.k.a. range coding) is probably the best introduction to information theory out there. Understanding it requires a familiarization with all the basics and its proximity to the source coding theorem makes it a useful building block for understanding information and further concepts.
Here is my version of an explanation.
Symbol-by-symbol Coding
Fundamentally, the problem at hand is that of converting a sequence of symbols between two alphabets.
In practice, however, we only consider binary encodings, where the target alphabet is of size 2: \(\{0,1\}\), but everything presented here equally applies to alphabets of larger sizes (e.g. 10: \(\{0,1,...,9\}\)) with respective changes of base from 2 (to e.g. 10).
Block Coding
When the source and target alphabets are of the same size, a conversion algorithm can be made trivially by assigning one target symbol to each source symbol. Consider an alphabet of two symbols \(\{A,B\}\):
According to this assignment, the sequence \(ABA\) would encode into \('010'\) and vice versa for decoding.
Larger alphabets require assigning longer codes to each symbol. For a source alphabet of 4 symbols:
each letter is assigned a 2-bit code. The same sequence \(ABA\) would encode into \('00~01~00'\).
Notice that, for alphabet sizes that are powers of 2, the length of individual symbol codes is the \(\log_2\) of the size. So 3-bit codes are sufficient to support an alphabet of 8 symbols:
the same sequence \(ABA\) would encode into \('000~001~000'\).
Using this method, if the size of the alphabet is not a power of 2, there are codes that aren’t assigned any symbol. For example, an alphabet of 26 symbols with 5-bit codes:
This may be satisfactory for certain applications. But if we prefer short (i.e. compressed) encodings, there are ways of making more efficient use of the code-space.
Variable Length Coding
Consider assigning the extra space to symbols in a way that shrinks the length of their assigned codes: if we assign both 5-bit codes \('00000'\) and \('00001'\) to symbol \(A\), the last bit isn’t doing any work distinguishing between symbols anymore and can be dropped, leaving us with the 4-bit code \('0000'\).
We can absorb this extra code-space into symbols that are the most likely to occur to maximizing efficiency. For example, in English text, the six most common letters are typically \(\{A,E,I,N,O,T\}\) so assigning more code-space to these symbols will result in shorter binary encodings in the long run:
Symbols being assigned 5-bits are effectively given \(\frac{1}{32}\) of the code-space, and the more likely 4-bit symbols are given \(\frac{2}{32} = \frac{1}{16}\) of the code-space. Encoding the string \(ABA\) according to this assignment produces a code \('0000~00010~0000'\).
This notion of assigning smaller codes to more common symbols and longer codes to less common symbols can be shown to produce codes of minimal length when the proportion of code-space assigned to each symbol is equal to its proportion (or probability) in the message (i.e. string of symbols) to be encoded.
Huffman Coding
Given a probability distribution over symbols, Huffman’s algorithm efficiently produces an assignments of codes to symbols which consistently minimizes the length of encodings that are sampled from that same probability distribution.
So if we consider the categorical distribution over letters as they could appear in English text:
Huffman’s algorithm will produce a “tree” corresponding to a code assignment like so (unlabeled symbols at the very end are, in order, \(K,Q,X,J,Z\)):
This simple algorithm aligns each symbol to a binary slice of the code space reasonably close to its share in the distribution. Encoding the string \(ABA\) according to this assignment would produce \('0000~111000~0000'\) because the letter \(B\) is relatively rare accordig to our distribution.
The length of individual symbol codes in this example range between 3 bits for the most frequent letters \(\{E,T\}\) to 10 bits for the least frequent \(\{J,Z\}\).
This assignment of codes to symbols is optimal insofar as it is an assignment, meaning that each symbol gets its own fixed code. It can only give shares of code-space which are powers of \(\frac{1}{2}\). The efficiency of Huffman codes depends directly on the degree to which this produced distribution accurately models the true distribution (true in black, modeled in gray):
$$$$
Whenever the probability distribution doesn’t align exactly along powers of \(\frac{1}{2},\) it becomes possible to outperform methods like Huffman by giving up this “alignment” of symbols to the code-space and working instead directly with the true distribution.
This is arithmetic coding.
Arithmetic Coding
Arithmetic coding is not a symbol-by-symbol coding scheme. Instead, each possible messages is assigned a binary expansions that is precise enough to uniquely identify it.

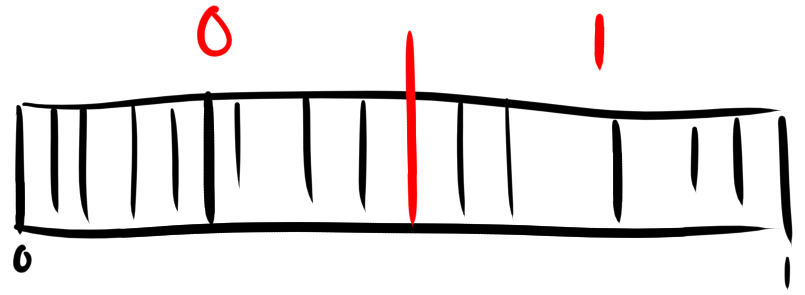

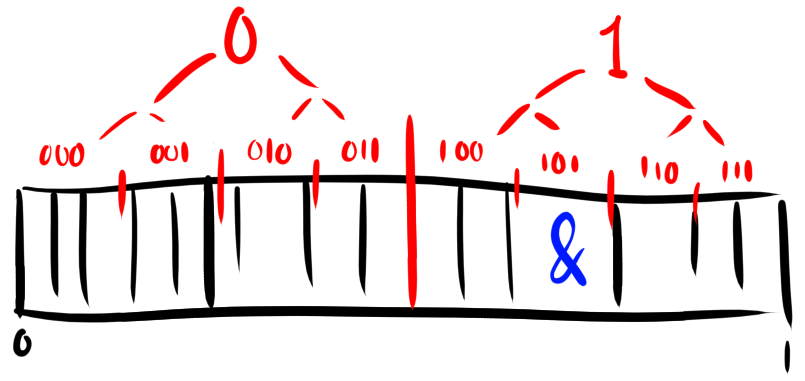

The same way every binary sequence corresponds to a finite interval of code-space by nesting divisions by 2 in the unit interval:

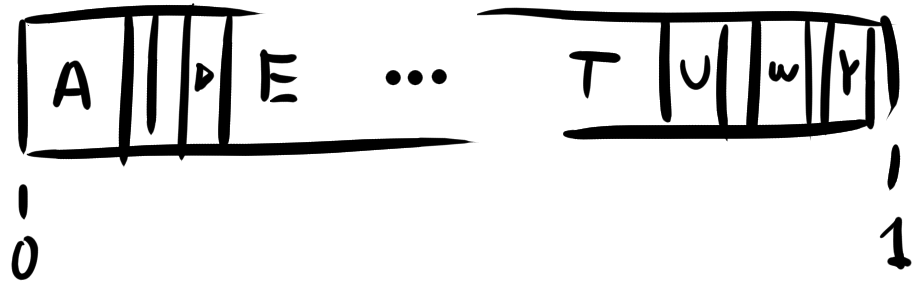

So does every sequence of symbols from our alphabet correspond to a finite interval of the unit space by nesting divisions of the space into our distribution of symbols. For example, given a simple distribution over two symbols \(\{A \mapsto 0.67, B \mapsto 0.33\}\):
To arithmetically encode a sequence of symbols given a distribution, it suffices to find the first binary interval that fits entirely within the interval determined by the sequence we want to encode.
The decoder, using the same distribution, can reverse this operation by finding the smallest message interval that can fit a given binary code’s interval.
Example 1
To encode the sequence \(ABA\) according to the toy distribution \(\{A \mapsto 0.67, B \mapsto 0.33\}\) we showed above, we find that the code \('1000'\) uniquely determines the sequence \(ABA\) by being the first binary sequence whose interval fits entirely within the interval of the symbol sequence:
Zoomed in on the \((0.25,0.75)\) interval:
The exact way in which this mapping between the code- and symbol-space is computed will vary by implementation with different trade-offs between precision, memory requirements and types of probability distribution. But this correspondence between intervals is what is computed by an arithmetic coder.
Example 2
More realistic examples, with longer codes, are somewhat challenging to demonstrate graphically.
Consider encoding the sequence of letters \(NOT\) from a 26 letter alphabet with associated probabilities. Below, message space is separated between letters in alphabetical order and each truncation of the space is highlighted in red in the previous space. Starting with the whole unit interval:
The distribution for the second symbol is nested within the interval of the first symbol:
Again, the distribution for the third symbol is nested within the interval for the first two:
We find the word \('NOT'\) to be uniquely determined by \('100100110111'\), the size of which is \(12\) bits.
Measuring Information
By nesting distributions within symbol intervals, the proportion of the unit interval taken by subsequent symbols is scaled by the width of the interval they are nested in.
Therefore, the width of any message is the product of the widths (i.e. probabilities) of its constituent symbols, which is equivalent to assigning messages probabilities equal to the probability of independently sampling each of its symbols in sequence:
\[P(\mathrm{\bf x}) = \prod_i{P(x_i)}\]
Knowing this width (i.e. probability), we know that the length of the code’s interval must be fully contained within, meaning the arithmetic code itself cannot be shorter than the number of times it takes to split the unit interval in half to reach that width, i.e. the logarithm base-\(\frac{1}{2}\) of the probability, i.e. the negative logarithm base-2:
\[\begin{align} \mathrm{len}(\mathrm{\bf x})_2 &~\ge~~ \log_{\frac{1}{2}}\left(\prod_i{P(x_i)}\right)\\ &~\ge -\log_2\left(\prod_i{P(x_i)}\right) \end{align}\]
Or simply:
\[\mathrm{len}(\mathrm{\bf x})_2 ~\ge -\log_2P(\mathrm{\bf x})\]
We find that this lower-bound on the length of an encoding is precisely the definition the information of an event \(x\) with probability \(P(x)\):
\[I(x) = -\log P(x)\]
It is also the absolute theoretical lower-bound to any compression method on a stream of data with probability distribution \(P\).
Efficiency
Alongside this lower-bound, we can derive an upper-bound for the length of an arithmetic encoding. Consider the level of binary divisions immediately smaller than the width of the message (we round the logarithm up to the next integer):
\[\mathrm{len}(\mathrm{\bf x})_2 ~\ge~ \left\lceil-\log_2P(\mathrm{\bf x})\right\rceil\]
Notice that, although it is possible that no binary interval immediately smaller than the message’s interval fits within it if divisions in each space are not in perfect phase with each other—as in one of the examples above where the width of a 3-bit code (\(0.5^3 = 0.125\)) is less than the with of our message (\(0.67 * 0.33 * 0.67 \approx 0.148\)):
There is no valid code at that resolution for alignment reasons.
Subdividing the space only once more is always guaranteed to produce a binary interval within the message interval. Since we have defined the arithmetic encoding as the first binary interval fully within the message’s interval, we get the upper-bound:
\[\mathrm{len}(\mathrm{\bf x})_2 ~\le~ \left\lceil-\log_2P(\mathrm{\bf x})\right\rceil + 1\]
which makes an arithmetic encoding at most 1 bit longer than the minimum it (and any other algorithm) can possibly achieve, or at most 2 bits more than the integer part of the logarithm.
EOM Symbol
A caveat to the above algorithm and calculations is that for some distributions, namely if the probability of some symbols in the distribution is more than \(\frac{1}{2}\), then individual bits can fail to discriminate between two successive levels of the nested symbol space.
For example, the interval of code \('00'\) is the first binary interval to be fully within the bounds of both messages \(AA\) and \(AAA\) using the distribution \(\{A \mapsto 0.67, B \mapsto 0.33\}\) because of the high probability of \(A\), which results in ambiguity on the decoder side:
The usually presented workaround to this issue is to include a special end-of-message (EOM) symbol to the distribution with a probability of \(\frac{1}{n}\) where \(n\) is the length of the message and use it as a terminating symbol, resolving the ambiguity.
This has the effect of slightly skewing the distribution and incurs an overall informational cost equivalent to encoding \(n\) times \(\frac{n}{n+1}\) and \(\frac{1}{n+1}\) once:
\[\begin{align} \Delta\mathrm{len}(\mathrm{\bf x}) &= -\log\left(\left(\frac{n}{n+1}\right)^n \cdot \frac{1}{n+1}\right)\\[6pt] &= -n\log\left(\frac{n}{n+1}\right) - \log\left(\frac{1}{n+1}\right)\\[6pt] &= -n\log(n) + n\log(n+1) + \log(n+1)\\[6pt] &= (n+1)\log(n+1) - n\log n\\[6pt] \end{align}\]
Which grows on the order of \(O(\log n)\):
I find this solution unsatisfactory as either:
the probability is exactly \(\frac{1}{n}\) in which case the decoder already knows the length of the message by way of the probability and the introduction of an EOM symbol becomes unnecessary, or
the EOM symbol’s assigned probability is either less or more than \(\frac{1}{n}\) which, in either case, makes the code more than \(\log n\) longer.
The more elegant alternative is to assume the length of each message must be prepended to each message in binary, letting the decoder know exactly where to stop the recursion. A direct binary encoding of a positive integer has a similar \(\lfloor\log_2n + 1\rfloor\) bit cost:
but simply prepending this code to the message’s code makes it impossible to determine where the length’s code stops and the message’s begins.
The solution is to either dedicate a fixed length (e.g. 32- or 64-bit) number or, for something more sophisticated, a universal prefix code (e.g. Elias) can be used which have an unambiguous ending (the prefix property) and also take on the order of \(O(\log n)\) bits (with a constant factor between 1 and 2) for any \(n \in \mathbb{N}\).
Adaptive Coding
Up to now, the probability distrbutions have been assumed to remain constant between iterations. This doesn’t have to be the case.

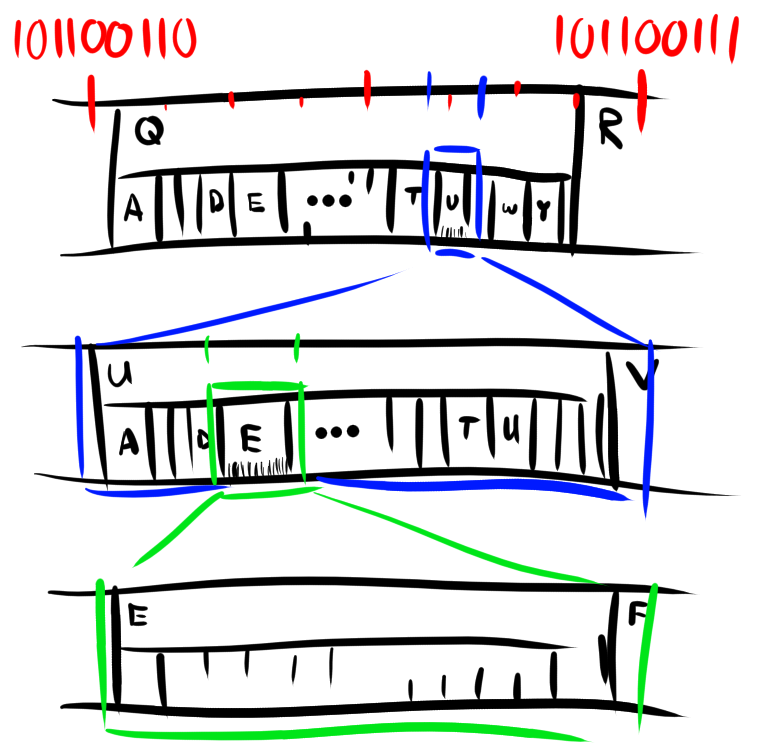

If instead of sharing one distribution, the encoder and decoder share a “model” that updates its probability distribution over symbols after each successive symbol, the likelihood of plausible messages can be increased, and code length decreased.

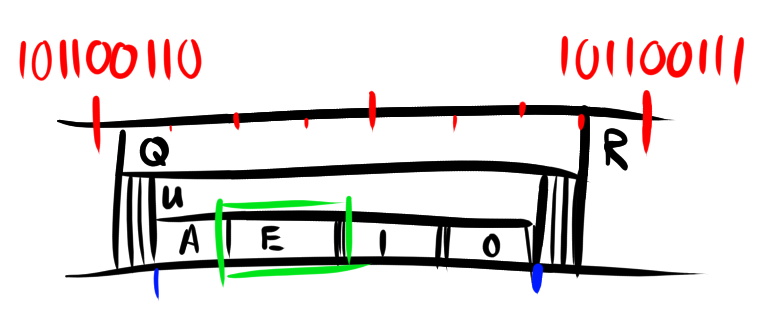

The existence and optimality of arithmetic coding (including adaptive) means the effectiveness of different lossless compression schemes can be shifted to the predictive power of the underlying models, instead of algorithms that can be difficult to reason about. Comparison between algorithms is reduced to a single, relatively easy to derive, measurement of efficiency.
